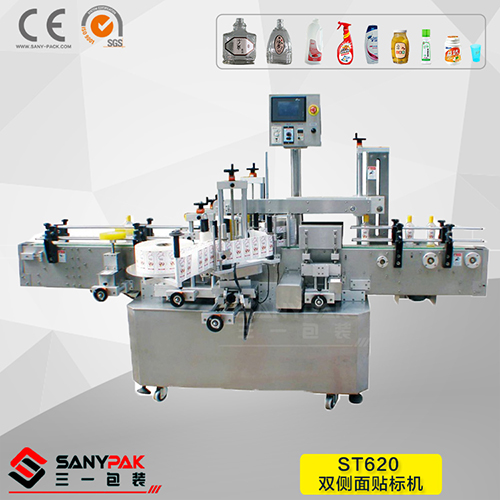

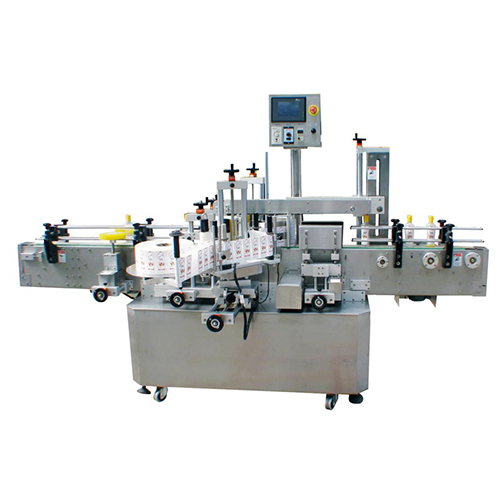

Automatic double-sided labeling machine ST620
Basic usage:
Applicable to flat bottles, round bottles, square bottles of single-sided and double-sided labeling, such as shampoo flat bottles, lubricants flat bottles, hand-washing round bottles and other double-sided labeling, both sides with the paste, double standard to improve production Efficiency, widely used in cosmetic, cosmetics, petrochemical, pharmaceutical and other industries.
Application:
(1) for the label: stickers labels, stickers film, electronic monitoring code, bar code and so on.
(2) Applicable products: requirements in the side of the plane, the side of the large curvature of the surface, attached to the label on the surface of the product.
(3) application industry: widely used in cosmetics, cosmetic, electronics, medicine, hardware, plastics and other industries.
Case:Shampoo flat bottle labeled mineral water bottle labeling, fruit juice beverage bottle labeling and so on.
Work process:
Core work principle: the sensor detects the product through, return the signal to the labeling control system, in the appropriate position control system to control the delivery of labels and affixed to the product to be labeled position, the product flows through the marking device, Product, a label attached to the completion of the action.
Operation process: put the product (can be connected to the pipeline) -> product delivery -> product separation -> labeling (equipment automatically) -> collection of labeled products.
Features:
1,Machine main construction by Stainless Steel #304.
2,PLC combined with touch screen control system.
3,High accuracy labeling, ±1 mm tolerance.
4,Servo motor driven labeling head, labeling speed is press belt to ensure high speed and quality labeling.
5,Push and Press sponge attachment is used to ensure smooth labeling without wrinkles or bubbles.
6,Equipped with bottle separating wheel to keep distance between two bottles.7,Wrap station for partial wrap-around labeling on round containers.
Technical parameters:
Labeling accuracy | ±1mm |
Labeling speed | 30 to 150 pieces per minute |
Applicable product size (width) | (Conveying direction): 20mm ~ 250mm |
Applicable product size (width) | (Conveying width direction): 30 mm to 90 mm |
Applicable product size (height) | 60mm～280mm |
Applicable label size | Length: 20mm ~ 200mm |
Width (bottom paper width): 20mm ~ 160mm | |
Label roll diameter | Φ76 mm |
The maximum diameter of the label | Φ280 mm |
Machine size (L × W × H) | 3000mm×1450mm×1600mm |
Applicable power supply | 220V 50HZ |
Total power | 1100W (traction step) |
1600W (traction servo) | |
Total Weight | About 330Kg |
