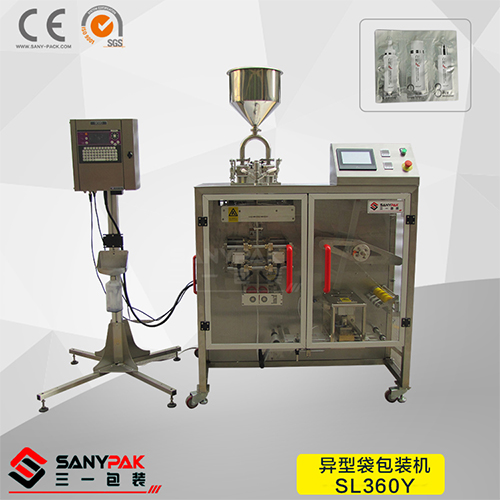

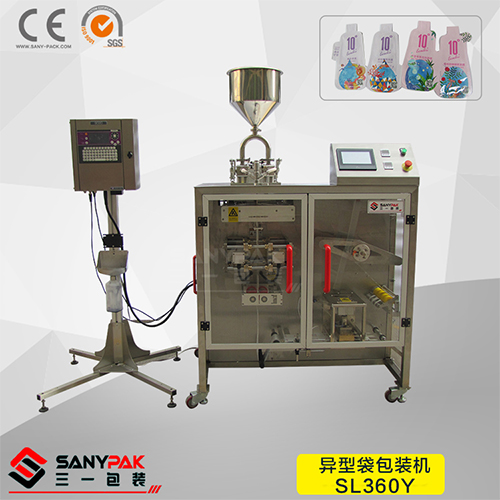

Shape sachet filling sealing packing machine SL360Y
Application:
Cosmetics, shampoo, conditioner, cream, oil, sauce, oil, liquid, perfume, pesticide EC, Chinese medicine, cough and other liquid packaging
Main Features:
1,Automatic product measuring,feeding,filling,bag forming and data printing,sealing.
2,PLC is combined with touch screen control system,it is easy to operate.Product output and
self-diagnostic machine error are directly showed on screen.
3,Servo motor driven heat sealing film pulling system is reliable and accuracy,it is convenient to adjust bag length.
4,High sensitive optical fiber sensor can automatically trace color mark accuracy.
5,Machine main material is No.304 stainless steel and aluminum alloy.
6,PID temperature controller monitors heat sealing temperature within ±1°C.
Technical parameters:
model | SL360Y |
Production capacity (bag / min) | 20-50 |
Measuring range (ml) | 1-50 |
Bag size (mm) | Long (L) 40-180, wide (W) 40-160 |
Total power (watts) | 2000 |
voltage | 220V/50-60Hz |
Packaging Materials | Paper / polyethylene, polyester / aluminum foil / polyethylene, nylon / polyethylene, |
Net Weight (kg) | 320 |
Dimensions | 1200x1300x1800mm(LxWxH) |
Seal form | Backpack bag |
Shenzhen Sany pack Equipment Co., Ltd. is a research and development, production and sales as one of the professional packaging equipment manufacturers. The company's main products are mask packaging machine, vertical packaging machine, strip packing machine, filling equipment, labeling equipment, non-standard assembly line equipment, the company's products have been in the pharmaceutical, cosmetic, food, hardware and other industries widely used, Some products are exported to Europe, the Americas, Southeast Asia and other regions.
