Automatic positioning wrap-around labeling machine

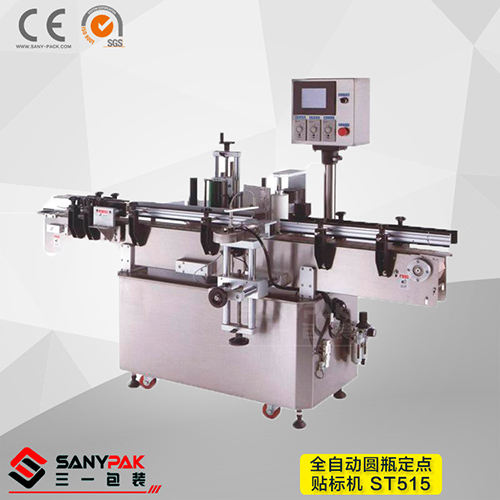

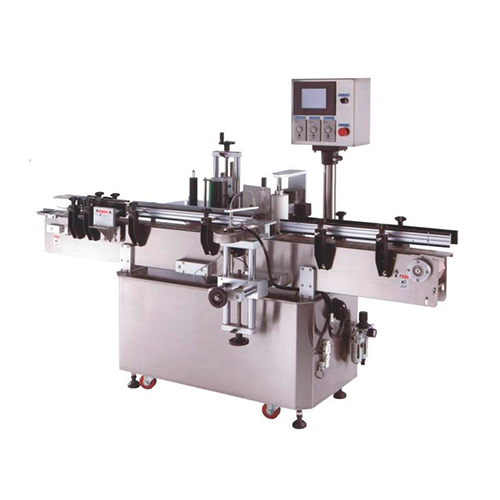

Automatic positioning wrap-around labeling machine  ST515

Application:

1, for labels: stickers labels, stickers film, electronic monitoring code, bar code and so on.

2, for products: diameter 30mm ~ 90mm between the round bottle.

3, the application industry: widely used in medicine, food, toys, cosmetic, and other industries.

4, application examples: disinfection of water bottles labeling, gel water double labeling, red wine bottle positive positioning, round mineral water bottle labeling and so on.

Features

1, powerful, the same device can achieve a round bottle of objects marked with a single label and double labeling, double standard spacing can be flexibly adjusted. Optional circumference positioning detection device can be achieved in the circular surface positioning labeling function;

2, the label coincidence is high, the configuration of the top pressure mechanism, combined with 3-axis positioning mechanism, to prevent fluctuations in the bottle up and down to improve the accuracy of labeling;

3, automatic separating bottle,equipped with bottle separating wheel to keep distance between two bottles.

4, touch screen control, human-computer interface with operational guidance function, parameter setup is intuitive and clear, simple to change for different functions;

5, intelligent control, automatic photoelectric tracking,no object is no labeling,automatic calibration without label,and label automatic detection function, avoid to waste and leak label;

6, health and clean, adopted tainless steel and advanced aluminum alloy, solid quality, apply with GMP production requirements;

Technical Parameters

1, for the label length (mm): 20mm ~ 285mm

2, for the label width (bottom paper width / mm): 20mm ~ 160mm

3, for the product diameter (for round bottles) and height: diameter: φ25mm ~ φ90mm Height: 25mm ~ 300mm

4, for the outer diameter of the label (mm): φ280mm

5, labeling accuracy (mm): ± 1mm

6, the standard speed (m / min): 5 ~ 25m / min

7, labeling speed (pcs / min): 25 ~ 60pcs / min (with the product size and label length)

8, conveying speed (m / min): 5 ~ 18m / min

9, weight (kg): about 185kg
