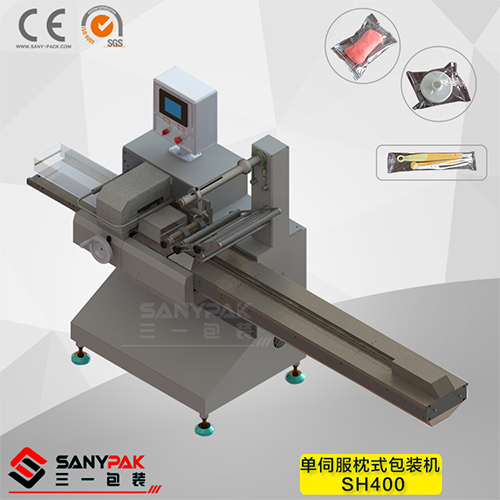

Single Servo Driven Pillow Packing Machine SH-400

Main Features:

1,PLC is combined with 7inch touch screen control system,it is easy to setup parameters. Product output and

self-diagnostic machine error are directly showed on screen.

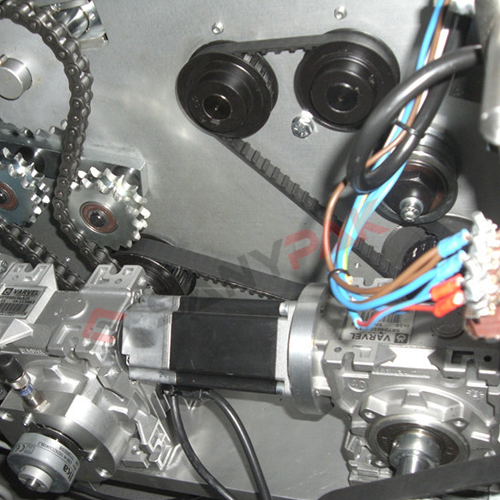

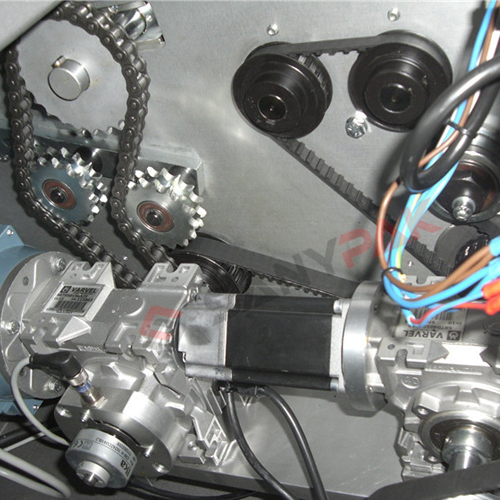

2,Servo driven system,film speed is automatically synchronous with conveying speed.

3,When bag length is changed,the speed of transverse seal can be directly adjusted by hand wheel.

4,Machine design for easy maintenance and cleaning.

5,Pulling film wheel open is controlled by Pneumatic switch,the sealing wheel is automatically open when machine turn off.

6,It has safety guard to comply with CE standard.

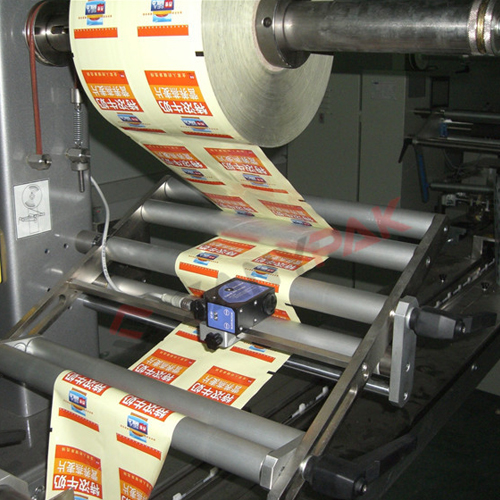

7,Optional equipment: Photocell for printed film, Printer for date, line shaft for automatic feeders, etc.

Application: It is applicable for packing all kinds of solid and regular objects, including the foods such as biscuit, bread,

instant noodle, ice cream, moon cake and soft sweets, and other objects such as toilet soap, medicated essence, note book, pen pack,tape and medicines in regular shapes.

Technical parameters:

Maximum packing speed:	80 bag/min
Maximum film width:	for400mm
Maximum packing height:	80mm
Packing length:	Min:155mm，maximum:.450mm
Membrane internal roll diameter:	70/80mm
Film outside roll diameter:	350mm
