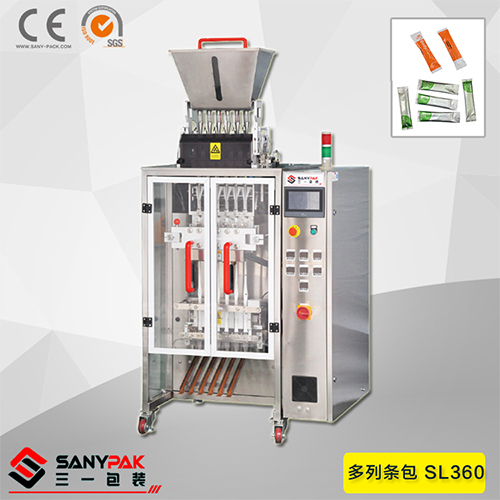

Multi-Lane Stick Pack Filling Sealing Packing Machine SL360
The scope of application:
1, bag type is long narrow pouch.
2, can be installed kinds of material filler, mainly for granule,liquid, powder products

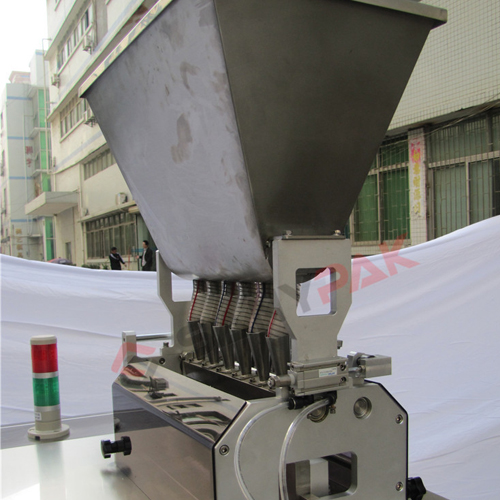

3, granule can beused the board, push cup, shake head and other containers for filling
4, liquid or paste can be used piston pump, magnetic pump, gear pump and other filling systems.
5, powder is used servo auger filler.
6,packing material is composite film.
Main Features:
1,Automatic product measuring,feeding,filling,bag forming and data printing,sealing,bag cutting.
2,PLC is combined with touch screen control system,it is easy to setup parameters.
Product output andself-diagnostic machine error are directly showed on screen.

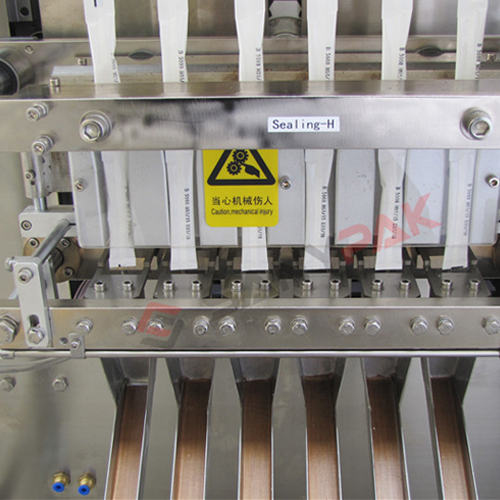

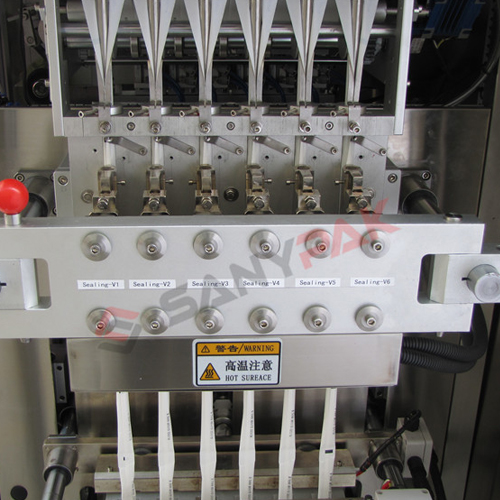

3,Motor driven heat sealing film pulling system is reliable and accuracy,it is convenient to adjust bag length.
4,Machine adopts dynamic round knife to cut film,it is flat,no burrs.
5,Machine main material is stainless steel and aluminum alloy.
6,PID temperature controller monitors heat sealing temperature within ±1°C.
Technical parameters:
model | SL360 | ||
Number of channels | 4 Lane | 6 Lane | 8 Lane |
Bag form | Bar, sticky | ||
Yield | Up to 40 packs / min / channel | ||
Bag length (mm) | 50-140 | ||
Bag width (mm) | 16-35 | ||
Maximum film width (mm) | 360 | ||
Packed per bag (ml) | 1-20 | ||

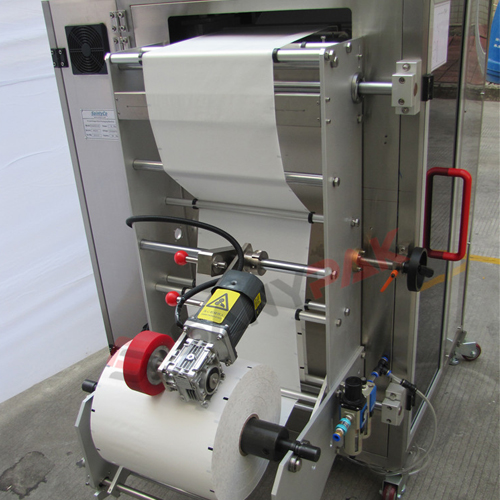

The outer diameter of the film roll | Maximum 350mm | ||
Core diameter | 70-75 mm | ||
Voltage | 220V, 50Hz, single phase | ||
Air consumption | 7 l / min @ 0.6 mbar | ||
