multi head computer combination weigher

Classification of the genus:14 head computer combination weigher
Click times:
Release date:2017/05/23
More
Online inquiry

Detailed introduction

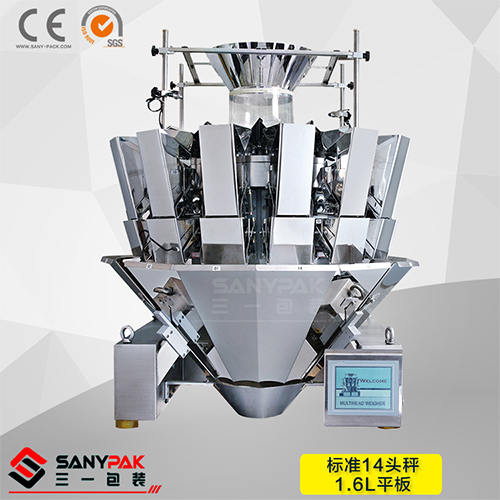

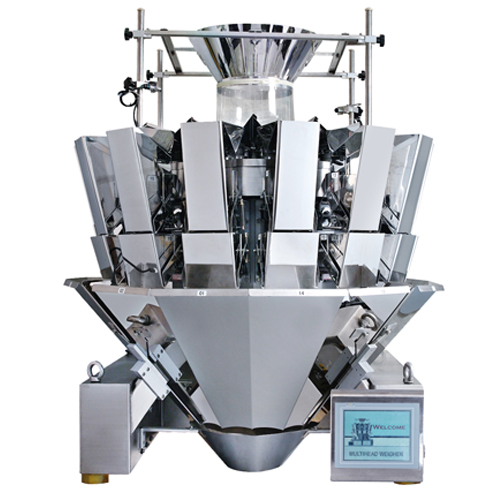

multi head computer combination weigher SP-A14

Non - standard，assembly，line，equipment

The scope of application:

Suitable for weighing candy, melon seeds, jelly, frozen, pet food, puffed food, pistachio, peanuts, nuts, almonds, raisins and other snack foods, shell nuts,

hardware, plastic particles and other granular, Shaped, round and irregular shape material.

The unique performance:

1,Super computer connection function (use computer to count daily production).

2,With "automatic sorting", "one drag two" function of the aggregate processing system can directly exclude the unqualified products,

and directly deal with two packaging machine feeding signals.

3,The motor open angle can be freely setup as the weighing objects, to achieve high-speed precision weighing.

4,Several bucket of the target weight can be set in order to effectively solve the jam problem of the bulk materials.

Main features:

* Perfect combination for high precision and high speed,the best combination is choosed by compuer from multi weigher head.

* High precision digital weighing sensor for accurate measurement, Chinese / English and other languages LCD display operating system.

* With super fault self-diagnosis ability, thus effectively reducing the mechanical failure rate.

* With a powerful help menu,easy operation.

* Powerful data automatic statistical function, record the total weight,number,qualified rate of each batch and other indicators.

* Count number function can achieve your more needs.

Technical parameters:

Weighing range	20-2000g
Weighing accuracy range	0.2-2g
Maximum weighing speed	65WPM
Hopper capacity	1600ml
Drive mode	Stepper motor selection device hopper / printing device / tolerance selection device / rotatable main vibration machine
Operation interface	8.4 inch button screen
Power Specifications	220V/1000W/50/60HZ/10A
Package Size	(mm)1482(L)x1080(W)x1116(H)

Structural dimensions:

Non - standard，assembly，line，equipment

Shenzhen Sany pack Equipment Co., Ltd. is a research and development, production and sales as one of the professional packaging equipment manufacturers. The company's main products are mask packaging machine, vertical packaging machine, strip packing machine, filling equipment, labeling equipment, non-standard assembly line equipment, the company's products have been in the pharmaceutical, cosmetic, food, hardware and other industries widely used, Some products are exported to Europe, the Americas, Southeast Asia and other regions.
