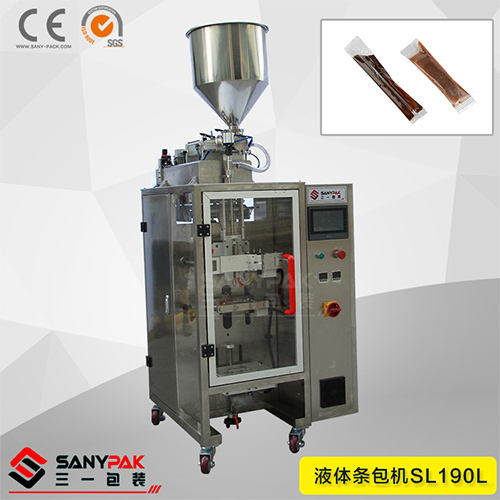

Liquid stick pack filling sealing packing machine
Main Features:
1,Automatic product measuring,feeding,filling,bag forming and data printing,sealing,bag cutting.
2,PLC is combined with touch screen control system,it is easy to setup parameters. Product output and
self-diagnostic machine error are directly showed on screen.

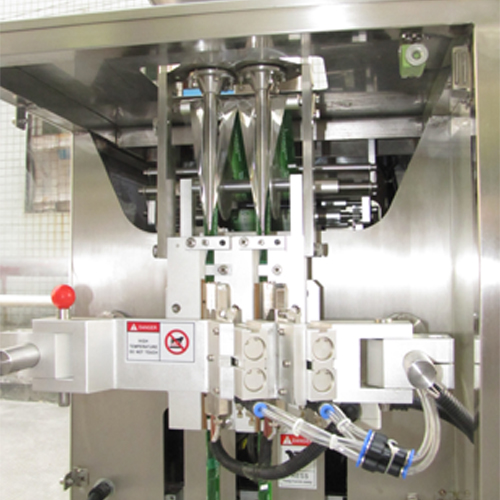

3,Motor driven heat sealing film pulling system is reliable and accuracy,it is convenient to adjust bag length.
4,Machine adopts dynamic round knife to cut film,it is flat,no burrs.
5,Machine main material is stainless steel and aluminum alloy.
6,PID temperature controller monitors heat sealing temperature within ±1°C
Application:
It is suitable for liquid,powder and granule product packing in a long narrow bag.
Second, the technical parameters:
model | SL190L |
Bag length (mm) | 50-160 |
Bag width (mm) | 16-35 |
Film width (mm) | Maximum 190 |
Packing quantity | 1-20g |
Packing type | Powder, granules, liquid |
Production capacity (bag / mini) | 25-30 packs / min |
Power | 220V/1Ph，50/60ZHZ / 1.2Kw |
Air pressure | 6 L/min ，0.6Mbar |
Seal form | Backpack bag |
