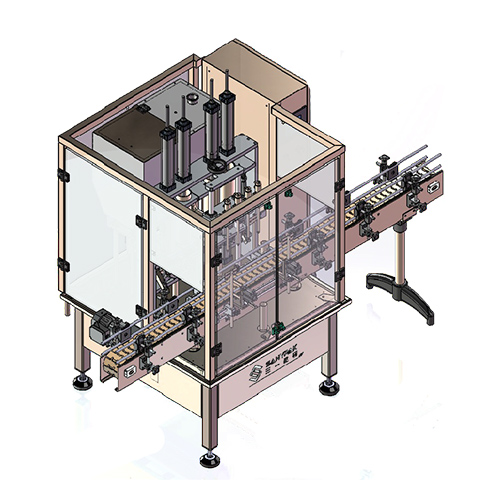

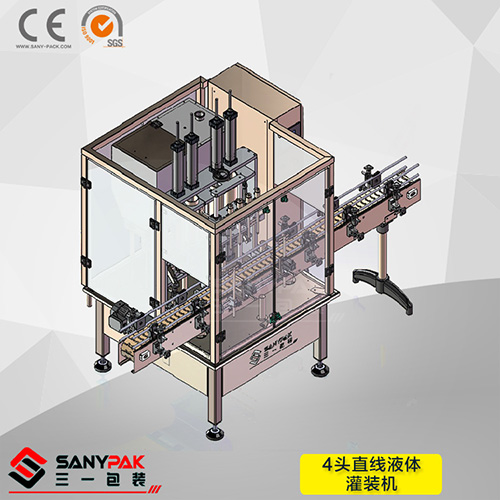

4 head linear filling machine SGL4A

Applicable scope

Straight-line liquid filling machine adopts piston quantitative filling principle, into the bottle, positioning, filling, the bottle is automatically controlled by the PLC, in line with GMP standards for medical, food, cosmetic, pesticide and fine chemical liquid filling.

Main Features:

1, touch screen interface is simple and convenient

2,4 head up and down filling type, effectively prevent the bubble generated

3, filling accuracy is about ± 0.5%

4, filling the cylinder by hard chrome treatment and grinding, the unique filling valve design, no leakage

5, no bottle is no filling, automatic shutdown function

6, according to the different bottles to design different positioning devices

7, easy cleaning and dismantle machine, also can finish cleaning or high temperature disinfection online.

8, PLC programmable control is used of Japan's Mitsubishi brand

9, pneumatic components are used in Taiwan Yade guest card

10, the device shell material is used SUS 304 # stainless steel

11, equipped with health, safety standards of glass protective cover, door open automatically shut down

Note: The filling range and speed can be based on user needs to design a different number of filling head.

Technical Parameters

model	SGL4A
Filling capacity (ML)	25-1000ml
Filling speed (BPM)	40-70 bottles / minutes (within the range of 50-500)
Power supply (VAC)	220V/380V
Motor power (KW)	1.0
Air consumption (MIN)	4KGS×30LITER
Dimensions	2000×870×19000
Weight (KG)	580
